ED 301: Windows Stack Protection I: Assembly Code (15 pts)

What You Need

• A Windows 10 or 2016 Server machine, real or virtual. You cannot use Windows Server 2008.

Purpose

Downloading and Installing Visual C++ Build Tools

Note If you already have Visual C++ Build Tools installed, click the Start button, scroll to the V section, expand "Visual Studio 2019", and click "Developer Command Prompt for VS 2019", as shown below. Then skip to the "Making the pwd Program in C++" section, below on this page.

https://visualstudio.microsoft.com/visual-cpp-build-tools/

Click the "Download Build Tools" button, as shown below.

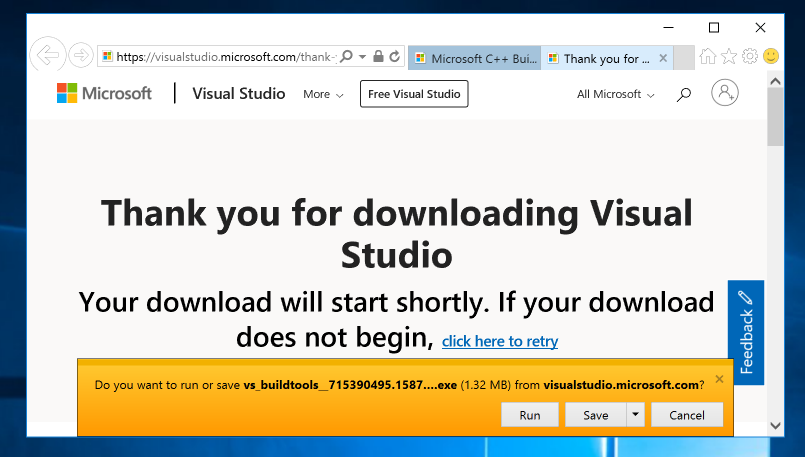

A download dialog appears, as shown below. Click Save. After the download completes, click Run.

If a User Account Control box pops up, click Yes.

Click Continue.

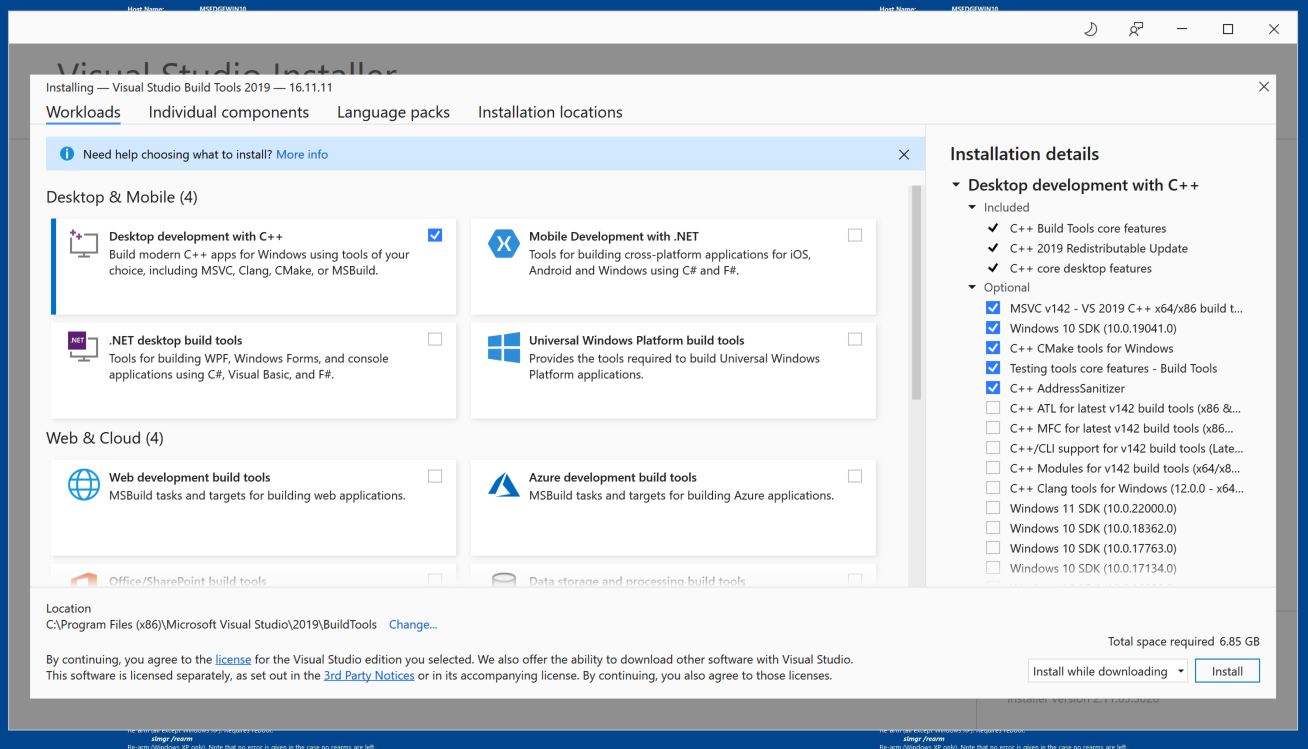

A large window appears, as shown below.

At the top left, check "Desktop development with C++".

At the bottom right, click the Install button.

Wait while software downloads and installs.

Click the Windows Start icon in the bottom left corner, and scroll to the V section. Expand the "Visual Studio 2019" section and click Developer Command Prompt for VS 2019

Tip

Making the pwd Program in C++

mkdir c:\127
cd c:\127
notepad pwd.cpp

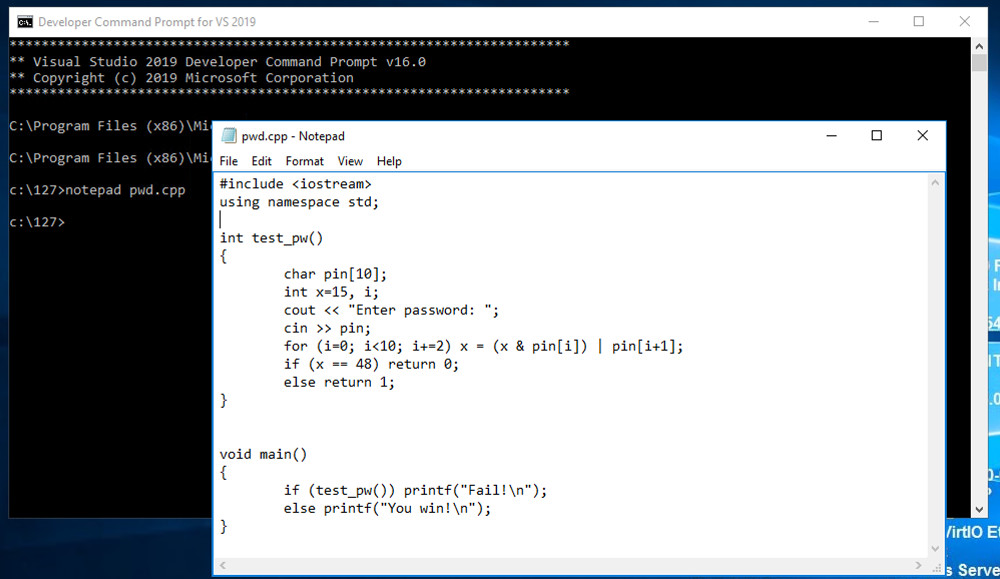

Enter this code, as shown below:

#include <iostream>
using namespace std;

int test_pw()
{
        char pin[10];
        int x=15, i;
        cout << "Enter password: ";
        cin >> pin;
        for (i=0; i<10; i+=2) x = (x & pin[i]) | pin[i+1];
        if (x == 48) return 0;
        else return 1;
}


void main()
{
        if (test_pw()) printf("Fail!\n");
        else printf("You win!\n");
}

In Notepad, click File, Save.

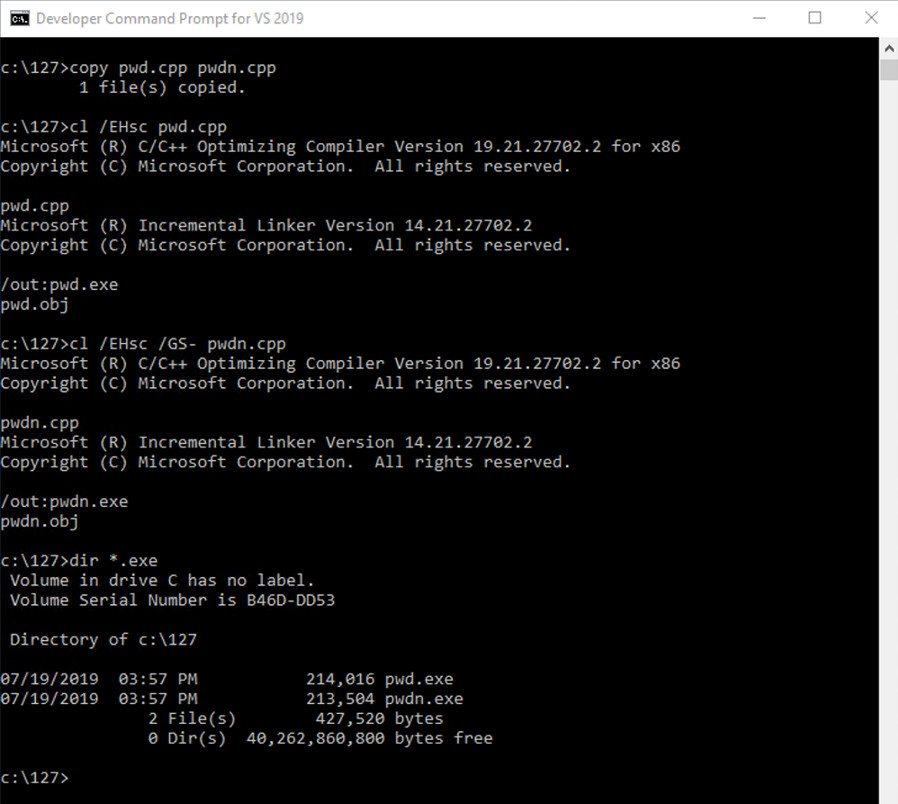

In the Developer Command Prompt window, execute these commands:

copy pwd.cpp pwdn.cpp
cl /EHsc pwd.cpp
cl /EHsc /GS- pwdn.cpp
dir *.exe

Installing IDA Freeware

https://www.hex-rays.com/products/ida/support/download_freeware.shtml

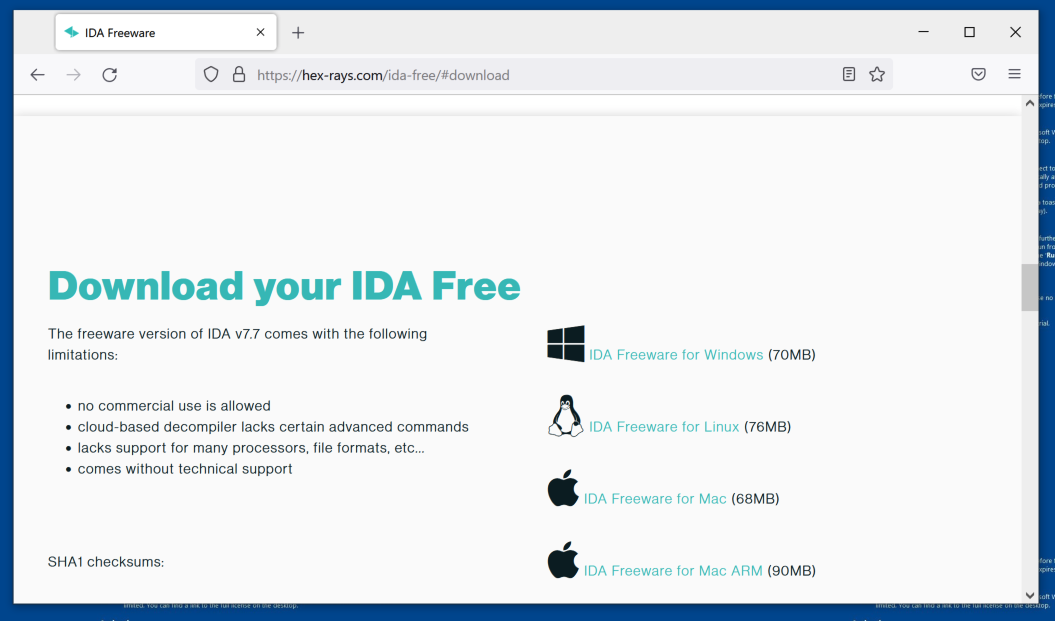

Download and install the Windows version, as shown below.

Viewing pwd.exe in IDA

Click "I Agree".

In the "IDA: Quick start" box, click New, as shown below.

Navigate to the C:\127\pwd.exe file and double-click it.

In the "Load a new file" box, click OK.

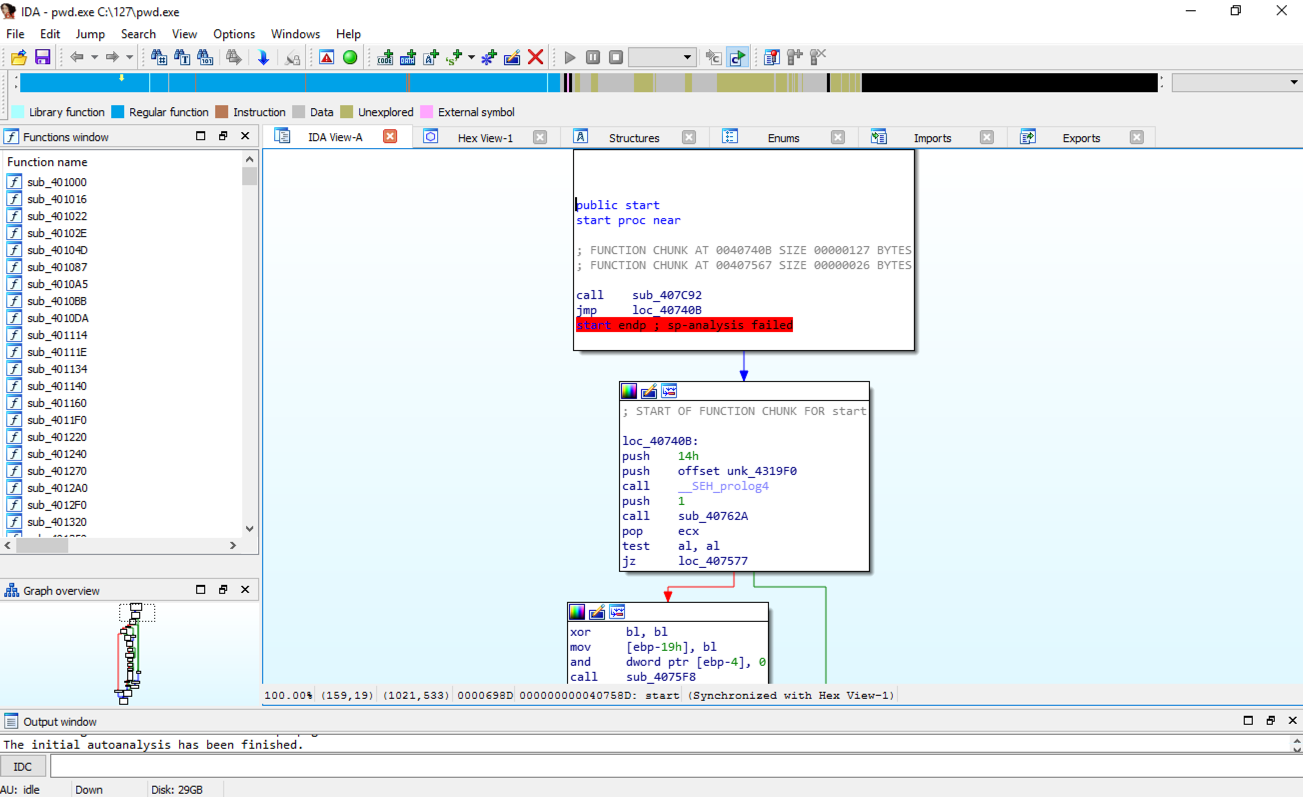

IDA opens, showing some assembly code, as shown below.

From the IDA menu, click View, "Open subviews", "Strings".

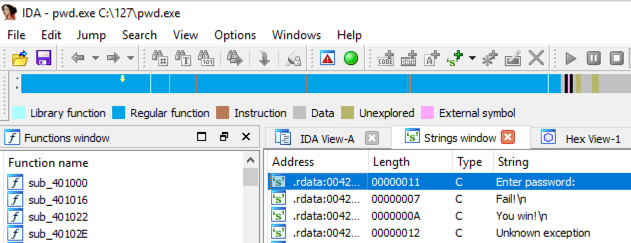

Double-click "Enter password", as shown below.

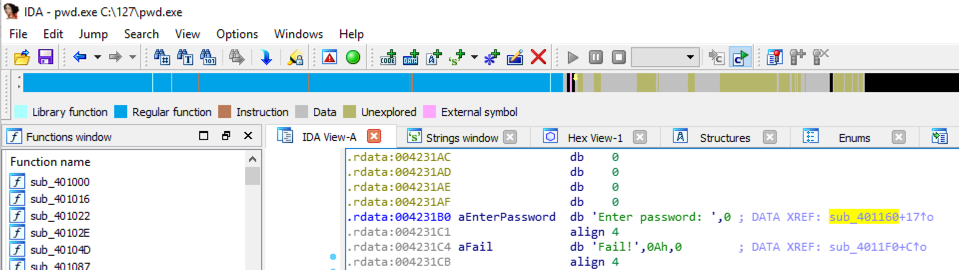

The .rdata section appears, showing stored strings. On the line containing "Enter password", find "DATA XREF". Point to the address after the "DATA XREF" marker, as highlighted in yellow in the image below, and double-click it.

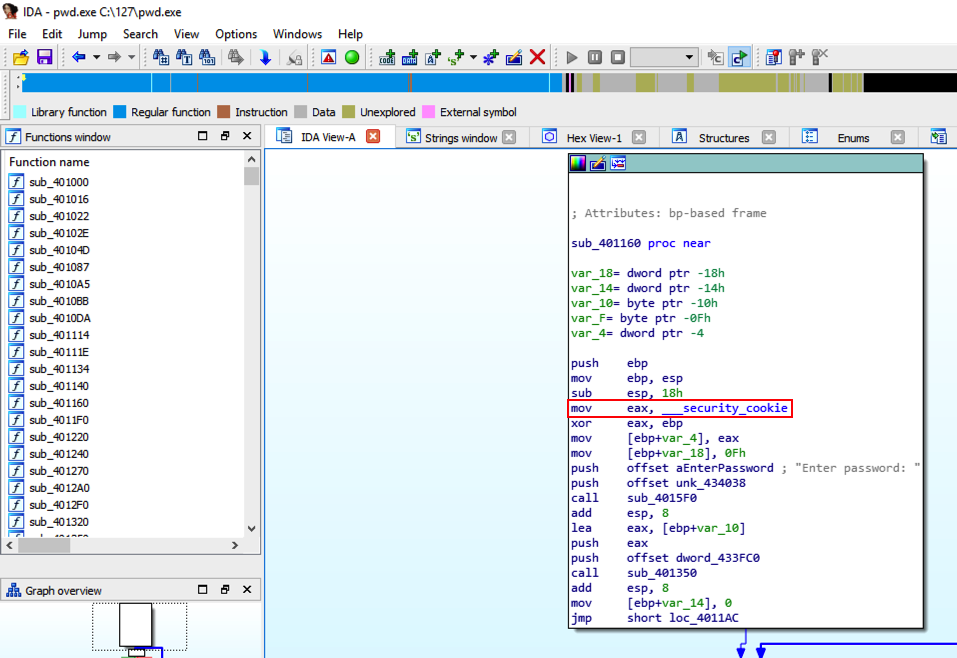

The function prologue appears, with a line containing "security_cookie", as shown below.

Viewing pwdn.exe in IDA

View the strings and follow the "DATA XREF" market to see the function that asks for the password again.

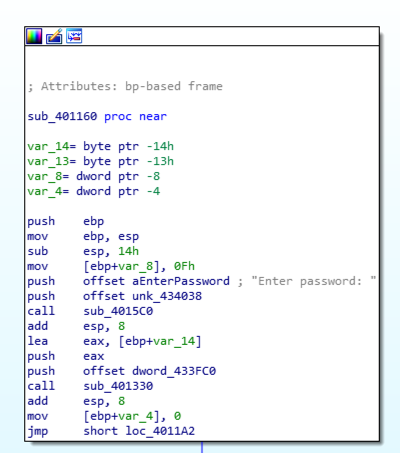

The "security_cookie" line is gone, as shown below.

Making Opcode Bytes Visible

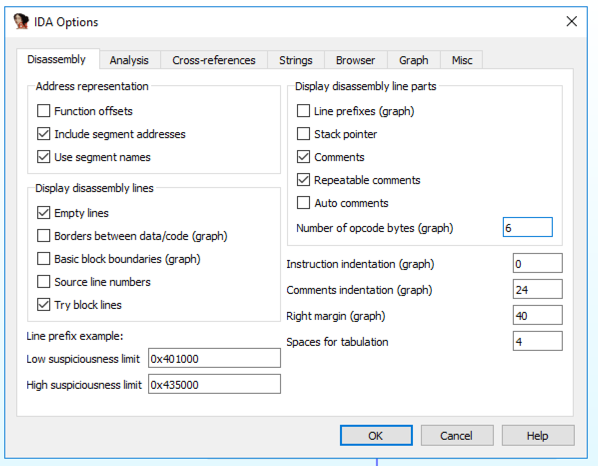

Enter a "Number of opcode bytes" of 6 as shown below. Then click OK.

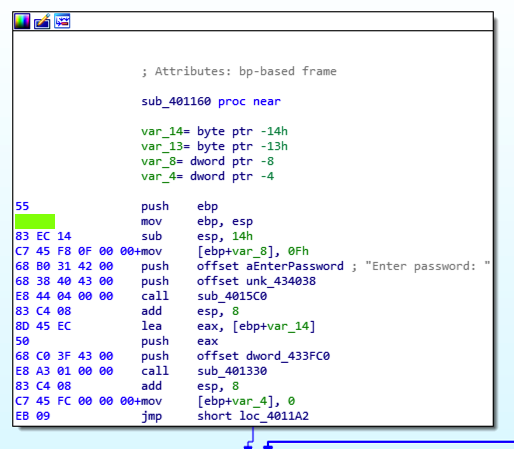

ED 301.1: Viewing Opcode Bytes (15 pts) Find the hexadecimal values covered by a green box in the image below. That's the flag.
